    Optical Encoder Fits in Tight Spaces

    Aug. 9, 2019

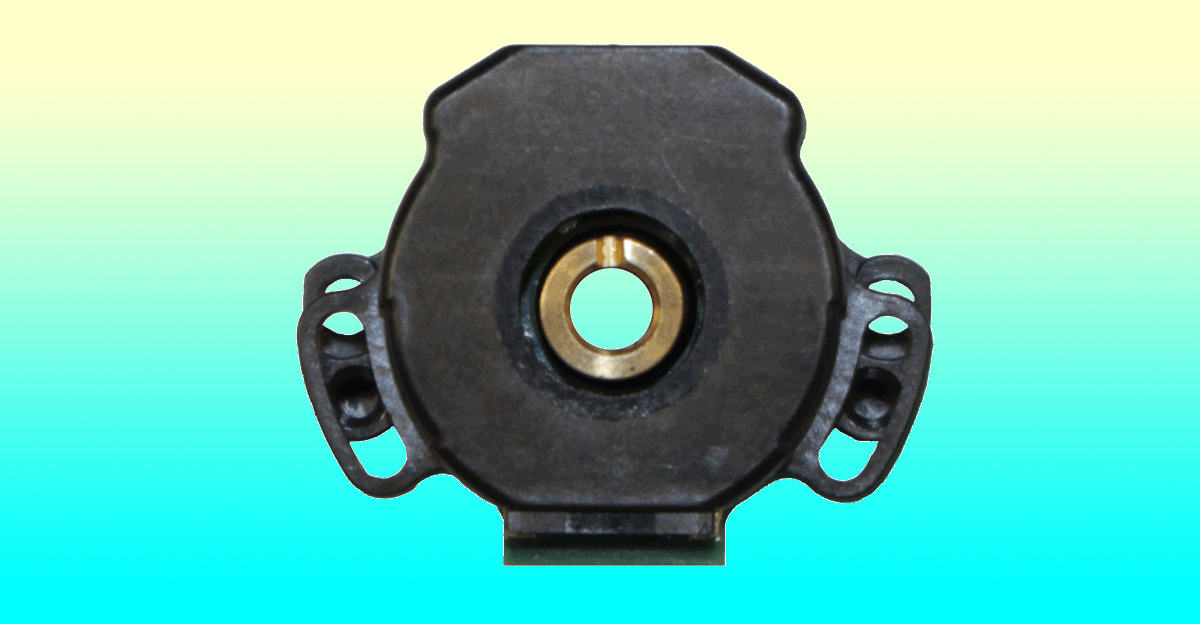

    The new QM22 series of incremental optical encoders from Quantum Devices Inc. measures just 22-mm in diameter and a 12.4-mm thick.
    MD Staff

    The new QM22 series of incremental optical encoders from Quantum Devices Inc. measures just 22-mm in diameter and a 12.4-mm thick. It fits on a NEMA 11 BLDC servo motor and can replace the obsolete Heidenhain/Renco R22i encoder line. It is capable of high precision positioning and is available with line counts up to 2500. Commutation output options including 4, 6, or-8 pole configurations eliminate the necessity for additional external commutation peripherals such as Hall Boards. Immunity from EMI/RFI noise greatly extends the range of suitable applications in which the QM22 series can be incorporated. The QM22 uses a modular, bearingless design that features an easy to install Lock-n-Twist assembly method. It has a hermetically sealed LED and complies with REACH and RoHS.

    Quantum Devices Inc., (608) 924-3000,

    www.quantumdev.com
