Making a Connection in Food and Beverage Processing

Feb. 4, 2016
Use the IIoT to obtain the five 9s peace of mind in the food and beverage industry.

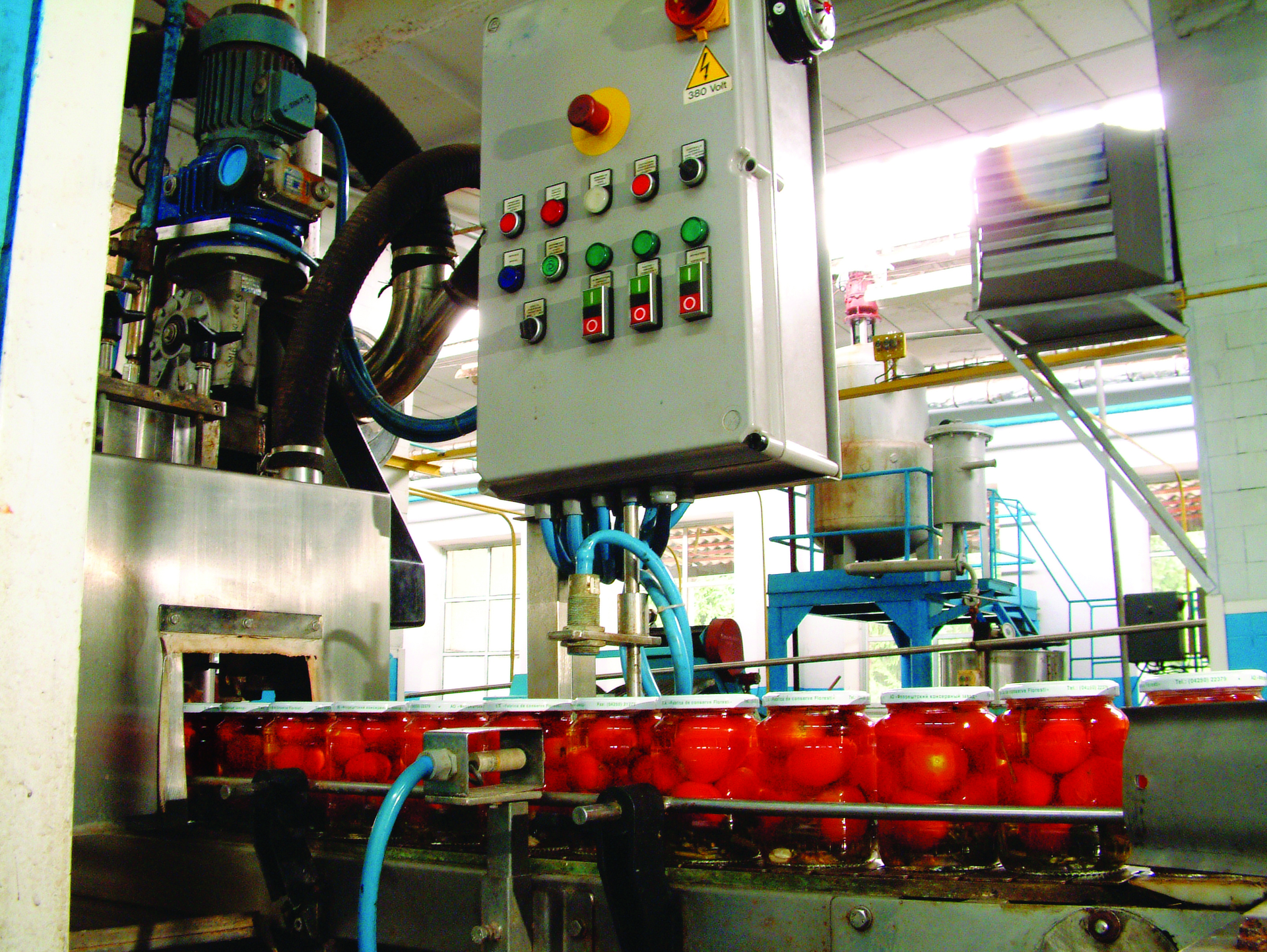

Networking equipment on tomato production lines should be able to withstand exposure to humidity, excessive heat, dust, vibrations, and cleaning agents.

As the communications network increasingly moves onto the production floor, the need for highly reliable, robust communications solutions have proved challenging in the food and beverage processing industry. Harsh conditions, demand for capacity to handle large volumes of data, and regulatory requirements for hygiene and safety present significant obstacles to achieving the 99.999 percent—also known as the “five 9s”—reliability required to maintain operations.

Choosing the right combination of connectivity equipment requires understanding both the environmental conditions and the increasing complexity and demands placed on networks in production environments.

The High Cost of Downtime

It’s imperative to design and build a reliable network that can ensure optimal uptime. Given the high cost of losses due to unrecoverable production time, not to mention the litigious threat associated with product safety, downtime is not an option in the food and beverage industry. According to Belden, the average downtime in the industry is estimated to be as high as 500 hours per year, with the loss valued between $20,000-$30,000 per hour.

Environmental Factors

Reducing interruptions isn’t easy, especially in the area of connectivity. The networking solutions that power machines, collect and communicate data, and control devices have to perform within an extremely harsh environment. Consider the standard conditions of food and beverage processing plants:

  • Temperatures that can range from -40° F to 221° F
  • High humidity levels
  • Powerful vibrations caused by high-pressure washing systems required to meet FDA regulations for product and area hygiene
  • Caustic cleansing agents
  • Combustible dust found in flour and grain storage areas

Needless to say, networking equipment in such environments must be able to withstand these conditions.

IIoT Demands Robust Connectivity

On top of designing a reliable and robust networking environment that can perform in spite of harsh conditions, the system must also be increasingly sophisticated to meet the demands of the network. As the Industrial Internet of Things (IIoT) expands, machines running machines is becoming the norm in production environments. For food and beverage, processors find exponential growth in two key areas: the variety of data and the volume of data.

Mission-critical equipment used in food and beverage processing requires a sound communication structure and customized wiring solutions.

Automation requires an immense array of data in an equally diverse range of formats. The variety of data can be anything from the status messages about contamination levels to monitoring information about operating temperatures. Gartner Research estimates that 25 billion “things” will be connected to the Internet by 2020. While the number reflects the sum total of the entire digital universe, manufacturing is expected to be a significant contributor to the volume of connected devices.

The cables and connectors that enable the machine-to-machine connectivity required to achieve the business value promised by the IIoT must be able to withstand constant wash-downs with high pressure washers and be submersed in liquid. In the case of wash-down equipment, these devices must be evaluated against a stringent set of criteria that measures both performance and reliability in environments where mechanical, thermal, and chemical stresses are the norm. Connectors suitable for these harsh environments will:

  • Be built on standardized connection technology for easy installation
  • Offer M8 and M12 connection technology with a variety of poles, as well as pre-assembled actuator and sensor cord sets or connecting cables for optimal flexibility
  • Use gold-plated crimp contacts to ensure reliable data transmission
  • Conform to IP67, IP68, IP69K, or other protection classes to stand up against cleaning with high-pressure equipment
  • Have Underwriters Laboratories’ (UL) certification for tolerances to vibration and thermal ranges from -40°F to 221°F
  • Demonstrate a proven track record of resistance and impermeability to aggressive chemicals and cleaning agents.

Wiring for the IIoT

Connecting the mission-critical equipment used in food and beverage processing, including sensors and actuators, requires customized wiring solutions that can tolerate and perform in the stressful conditions of the production environment. Wiring configurations include:

Passive wiring: Sensors and actuators are connected either centrally to a control cabinet via separate cables or de-centrally with I/O modules and common power lines. Both configurations provide the transmission of binary or analog signals, which can only be read. Of the two, I/O modules represent the more economical choice, as neither terminal blocks nor cable glands have to be installed. In addition, the availability of cables that come pre-assembled with standardized M8 or M12 connectors eliminates the need to remove insulation from the cable ends and attach ferrules.

Active wiring configurations: In manufacturing operations, the trend toward smarter processes is increasing the deployment of active wiring configurations. The variety of information that must be transmitted and evaluated requires bi-directional communication made possible with active wiring. In these environments, Ethernet is quickly becoming the preferred transmission protocol, along with field bus systems.

I/O Modules: Key to Diverse Data Transmission

Given the wide variety of data and how it is used, I/O modules that can increase the flexibility of wiring solutions are preferred. Models are available that are designed for passive wiring configurations, providing a cost-effective alternative for transmitting binary signals. Others support the transmission protocols required for bi-directional communication, including Industrial Ethernet variants like Profinet and Ethernet/IP, and field bus systems such as DeviceNet, CANopen, and AS Interface.

For optimum wiring, it’s important to consider the resistance of I/O modules to the harsh effects of the environment in which they are required to perform. Apply the same criteria for protection, tolerance, and performance used to measure connectors when evaluating I/O modules to ensure reliable data transmission.
