    Brazing machine

    June 4, 2013

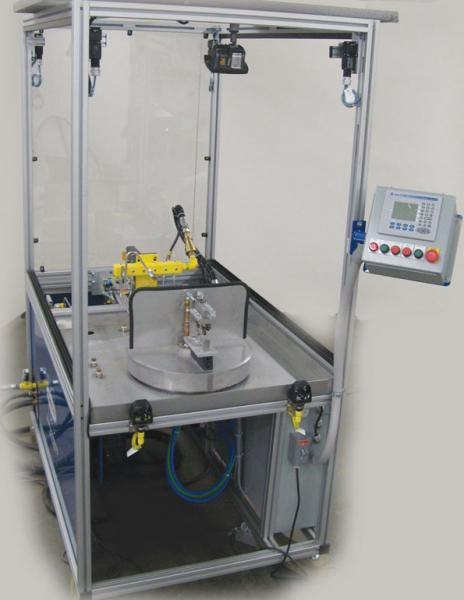

    The Braze Mate 100LS is designed for medium-volume brazing and soldering applications or short runs of various parts. The two-station machine offers automatic, timed heat control with multiple torches attached to a retractable arm. The machine handles between 40 to 70 parts per hour.
    Machinedesign Com Sites Machinedesign com Files Uploads 2013 06 Fusion Dg Braze Mate

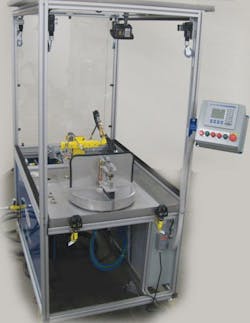

    The Braze Mate 100LS is designed for medium-volume brazing and soldering applications or short runs of various parts. The two-station machine offers automatic, timed heat control with multiple torches attached to a retractable arm. The machine handles between 40 to 70 parts per hour.

    Operators load a part into a stainless-steel fixture mounted to an 18-in.-diameter dial plate. Fusion-paste alloy is applied to the joint area with a handheld device. The operator manually rotates the dial 180° to a locked position, activating the heat cycle and positioning the burners in the heat zone. Oscillating burners eliminate “hot spots” at the assembly-joint area.

    When the joining temperature is reached, the torches retract into idle position, followed by an air and water-cooling cycle. The operator then rotates the dial plate 180° to the load/unload station. During heating/cooling phase, a second fixture can be loaded and pasted.

    Fusion Inc., 4658 E. 355th St., Willoughby, OH 44094, (440) 602-5510, www.fusion-inc.com
