    A small motor packs a powerful punch

    Sept. 12, 2013
    The big problem with many small motors is that they lack torque. Engineers at maxon precision motors inc. have solved this problem.
    Insidepenton Com Electronic Design Adobe Pdf Logo Tiny
    Download this article in .PDF format
    This file type includes high resolution graphics and schematics when applicable.

    The big problem with many small motors is that they lack torque. Engineers at maxon precision motors inc., Fall River, Mass. (www.maxonmotorusa.com), changed this with their EC4, a 4-mm-diameter brushless-dc motor and gearhead. They used the latest winding technology and the most-powerful magnets available to design a motor with 0.5 W of power. (The longer version EC4 generates 1.0 W of power.) The motor also puts out 0.4 mNm of torque.

    Machinedesign Com Sites Machinedesign com Files Uploads 2013 09 12385 Motor

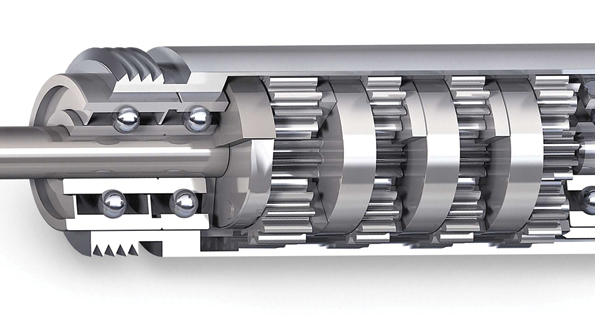

    The GP4 gearhead has a ceramic gearhead carrier, which lets it handle high input speeds and drive torques. The speed/torque gradient of the motor and gearhead is 50,000 mNm-1. The drive uses no mechanical commutation and there is no cogging.
